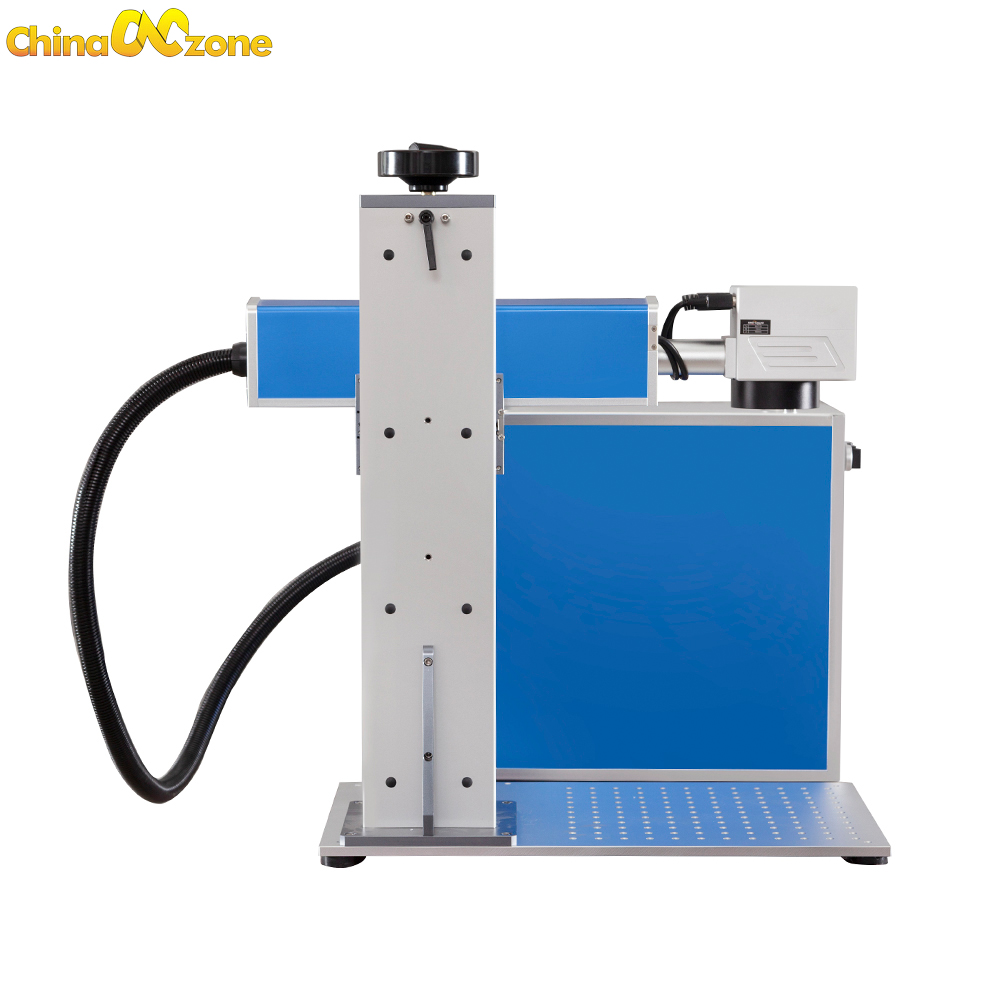

Fiber Laser Marking Machine 30W For Metal 110mm*110mm Split Fiber Laser Engraver Machine EU Stock

$2,690.00 ~~$3,200.00~~

PS: We have stock at EU US AU and CA warehouse.

Technical Parameters
Item	Value
Application	Laser Marking
Laser Power	30W
Brand Of Fiber Laser Module	Maxphotonics(Chinese famous brand laser source) Optional: IPG /JPT/Raycus laser source
Lift Span Of Fiber Laser Module	100,000 hours
Light Beam Quality	M2<1.5
Marking Line Speed	≤8000mm/s
Minimum Line Width	0.012mm
Minimum Character	0.15mm/Depends on the material
Marking Depth	≤1.2mm/Adjustable depends on the materials
Repeating Precision	±0.003mm
Focus Spot Diameter	<0.01mm
Output Power Of Laser	10%~100% continuously to be adjusted
Laser Wavelength	1064nm
Power Supply	AC220V/50Hz
Temperature /Humidity	15℃~35℃/10%~95%
Power Consumption	≤400W
Operating System	Win XP/Win7/Win8/Win10
Marking Format	Graphics,AI,Text, PLT, DXF, BMP, Dst, Dwg, LAS, DXP,Bar code, QR code etc.
Laser Type	Fiber Laser
Condition	New
Cooling System	Inbuilt air cooling
Communication	Standard USB2.0
Control Software	Ezcad (Easy To Use)
Place of Origin	China
Certification	CE, ISO
Laser Source Brand	Maxphotonics
Control System Brand	BJJCZ (Original version)
Gross Weight (KG)	60KG
Net Weight (KG)	35KG
Package	Wooden box
Key Selling Points	Easy to operate
Rotary Axis	Optional
After Warranty Service	Video technical support, Online support, Spare parts
Marking Area	300mm*300mm
Machinery Test Report	Provided
Video Outgoing-Inspection	Provided
Warranty of core components	2 years
Core Components	Motor, bearing, gear, pump, laser source, lens, galvanometer, control board
Optional (Not For Free)	Rotary device,moving table,other customized automation
This above parameters are laboratory test results,subject to actual operating conditions.

Fiber laser marking machine mainly consists of four parts: fiber laser, galvanometer scanning system, computer control system and the worktable.
